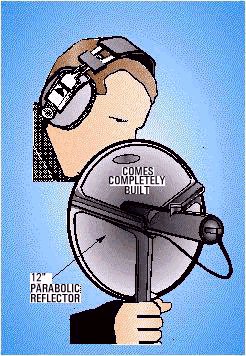

THE SUPER SENSITIVE BIONIC EAR
Complete with:
Professional headset, Ultra sensitive
microphone and 12" parabolic reflector.
- Individual volume controls for each ear
- Auto Safety Circuit shuts sound off at about 100 decibels for your ear protection
- On / Off & master volume control
- The Bionic Ear increases sound by up to 30 decibles
- Hear & pinpoint sounds of wild birds and animals, great for hunters, Search & Rescue teams, sports events and Law Enforcement
- Hear mere whispers at incredible distances
- Record those sounds with your own recorder
650nm,
THE BRIGHTEST LASER PEN WE'VE EVER SEEN
5 times brighter than the 670nm model!
INCLUDES 2 AAA Batteries
PEN SIZE: Aprox. 5.5" x .5"
SUPER SNOOPER BIG EAR AMPLIFIER
Listen through walls, hear conversations across the room. Add a parabolic reflector and hear blocks away. The BIG EAR Amp. can be hidden about anywhere. Makes an ultra sensitive intercom. Can be used as a 1.5W amp. We supply a mini-electret mike in the kit. You supply the speaker or headset for output. Power requirement 6 to 12v DC. SIZE: 1" x .75"
| kit $10.95 |
AA-1 |
built $29.95 |
WORLDS SMALLEST FM RADIO?
This tiny radio has incredible sound. It has a SEEK button, ON/OFF, Volume control and RESET. If it isn't the worlds smallest it's close to it. The sharp, clear sound that comes out makes you think you have a jam box. This mini FM Radio is only 2.3" x 1.3" x .6". Comes with earphones and battery. Great to take with you to a ball game that is simultaneously broadcast.
DC VOLTAGE MONITOR
If battery status is important, you need this kit. This kit uses 7 LEDs to monitor 12v DC in 1v, 1/2v, or 1/4v steps. Monitor 8v or 5v in 1/4v steps. Great for boats, motor homes, model planes or race car ni-cads. All parts and instructions are included. SIZE: 1.3" x 2.7".
If you want to switch more power see our Triac Power Kit (TP-1).
AC VOLTAGE MONITOR
A must for photographers and computer users. Use it in your motor home to monitor the AC generator. The AC voltage is indicated in 6v steps by seven multi-colored LEDs. SIZE: 1.3" x 2.7".
If you want to switch more power see our Triac Power Kit (TP-1).
MICRO-MINIATURE WIRELESS MIKE
So small you could hide this one on some real bugs! It's the smallest we've ever seen. With its super sensitive mike it transmits a whisper or a room of conversation to an FM radio, tunable from 88 to 108MHz FM. With a proper antenna it transmits about 1/2 mle. The kit is made with surface mounted parts, we have already mounted these parts. You install the leaded parts. Power requirement 6 to 12v DC. SIZE: .35" x .9"
WIRELESS FM MICROPHONE
Small but mighty this little jewel will out perform most units many times its price. It really stomps out a signal Transmits up to 400 yards. The WM-1 kit is a buffered wireless mike that operates from 80MHz to 120MHz FM, the frequency of any broadcast FM radio. Includes a mini-electret mike. Power requirement 6 to 12v DC. SIZE: 1.25" x 1"
LIE DETECTOR
This kit can be great fun at parties. Lie and an audible tone will change, the more you lie the louder the tone. when you lie lie your hands sweat, this kit allows you to measure these changes, only a very slight amount of change will cause the tone to increase in frequency. Power requirement 6 to 12v DC. SIZE: .8" x 1.2"
RADAR SIGNAL DETECTOR
The RSD-1 kit won't replace a $200.00 unit but this simple yet effective detector circuit can be built in less than an hour and can be tuned to respond to signals from 50MHz to 500GHz. We supply a lighter plug. Power requirement 9 to 15v DC. SIZE: 1.75" x 1"
CAR THIEF FOOLER
Completely built, ready to mount
The important part is the red flashing light on the dash. This built up module has a red flashing light that will scare most thiefs away. Mount in a box or mount permanently in the dash. Operates off of the vehicles battery, draws about 15mA. SIZE: .75" x 1"
ELECTRONIC TIMER
Use this kit in A-STABLE (continuous train of pulses) or in the MONO - STABLE (triggered time delay). Times circuits from nano-sec. to 30 min. Comes with a variety of resistors and capacitors suitable for most applications. Power requirement 4.5 to 12V DC. SIZE: .9" x 1"
If you want to switch more power see our Triac Power Kit (TP-1) or Relay Power kit (RP-1).
ELECTRONIC TIMER
Same as kit ET-1 but has computer aided software to determine values of resistors and caps for time intervals. If you want to switch more power see our Triac Power Kit (TP-1) or Relay Power kit (RP-1).

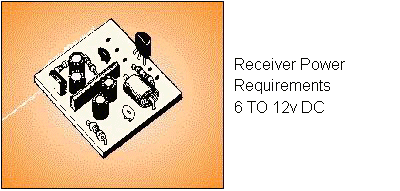

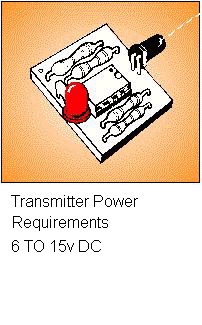

INFRARED
TRANSMITTER and
RECEIVER
This kit transmits a 40KHz modulated I-R signal to a distance of 6 to 8 feet. Place the transmitter on one side of a doorway and the receiver on the other side to see if on object passes through. Can be used as a remote switch to turn objects OFF and ON by infrared. The IR receiver will only receive 40KHz modulated infrared light. You can configure the output for normally ON or normally OFF operation. This allows you to use it as a security sensor or as a remote control switch. You can use the receiver to test TV or VCR remote controls. If you want to switch more power see our Triac Power Kit (TP-1) or Relay Power kit (RP-1).
Transmitter SIZE: 1" x .75"
Receiver SIZE: 1.4" x 1.2"
LIGHT GENIE
Turn anything on or off with light. Turns on at night off at daylight automatically. As the light touches or leaves the sensor it delivers 100mA of output to run a relay. SIZE: 1.5" x 1.2" Power requirement 6 to 15V DC. If you want to switch more power see our Triac Power Kit (TP-1) or Relay Power kit (RP-1).
TEMPERATURE GENIE
Ever lost frozen food because your freezer stopped? The TC-2 kit would have saved you money. An alarm activates when the temperature reaches a critical point. Turn ceiling fans on automatically when it gets too hot. This kit gives you 100mA of output. SIZE: 2" x 1.4" Power requirement 6 to 15V DC. If you want to switch more power see our Triac Power Kit (TP-1) or Relay Power kit (RP-1).
WATER DETECTOR
Add this to your security system to turn a sound alarm on when water is present. Uses an LM555 timer IC to generate the tone. The LM555 is configured in the A-Stable mode, with one difference. The sensor PC Board replaces one of the resistors. When any moisture is present on the Sensor PC Board, it causes the circuit to oscillate. Power requirement 9v DC. SIZE: 2" x 1
INDUCTANCE METER
This is the kit everyone has been asking for. Turn your digital ohm meter into an inductance meter. It will read inductors 3uH to 7MH. Power requirement 9v DC. SIZE: 1.75" x 2.5"
| cabinet $8.95 |
IA-1 |
kit $14.95 |
DIGITAL THERMOMETER
The DT-3 kit will turn your digital volt ohm meter into an accurate digital thermometer with .1 degree resolution. Measure temperatures from -40o to 250Fo The remote sensor is .25" sq. and can be mounted many feet from the meter. Power requirement 9V DC. Size: 2" x 1.35"
CAPACITANCE METER
This kit will turn your digital volt meter into a capacitance meter. Turn that junk box of unmarked capacitors into a fortune of usable parts. Measure capacitors from <2.2pF to 2.2uF. Power requirement 9v DC. SIZE: 1.8" x 2"

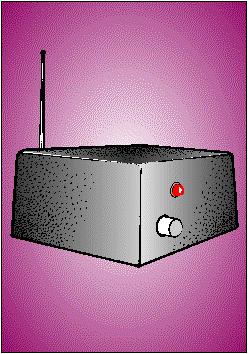

FM STEREO TRANSMITTER
Have your own FM radio station. Any stereo signal you plug into the FMST-100 transmitter kit will be transmitted to any FM radio tuneable from 76 to 108MHz FM. Plug in your CD player, tape deck and have a wireless link to any FM radio, within 200 ft. Listen to your CD while moving the lawn. Transmit from your car to your camper, or through an auditorium. Transmit music on one channel, sing on the other. Compatible with any of your audio system components. Clarity is excellent, aprox. 40dB stereo separation. Length of antenna determines distance of transmission. Comes complete with left & right input level control as well as a crystal for left & right stereo separation. 9v battery operation. SIZE: 1.5" x 1.6" Cabinet size: 1.5" x 2.5" x 3"
| kit $29.95 |
FMST-100 |
cabinet $8.95 |
TRIAC POWER KIT
Increase the output of any kit from 100 mA to 4 Amps
Connect to any of the Light Genie, Temperature Genie, Vox or Timer kits, and operate up to 400 watts of power. The Triac is best suited for resistive load applications such as heaters and lights. Size .75" x 2"
RELAY POWER KIT
Increase the output of any kit from 100 mA to 3 Amps
If you need to switch more power, up to 300 Watts, with the Light Genie, Temperature Genie, Timer or Vox kits, use the Relay Kit. We supply a two pole relay 1.5 Amps ea., tie both poles together and get 3 Amps. Size .75" x 2"
TV NOTCH FILTERS FOR CHANNELS 2 thru 22 ONLY
Our TV filters eliminate unwanted TV channels or interference that alters both sound and video with a beep beep beep. Works on cable channels (2 thru 22) only.
NOTE: All TV Filter Kits are sold for educational purposes only. You must obtain permission from your local cable company before using these filters on your cable system.
