Amateur Radio

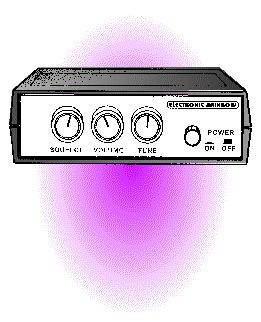

2 METER, 10 METER, 220 MHz FM COMMUNICATION RECEIVER
We use the new Motorola FM receiver MC3362 IC. The receiver is a dual conversion (10.7MHz tuned IF) with 1uV sensitivity and band width of 5KHz. It has 400mw of output. The only adjustments are easily tuned using one of these items- TV, cable converter, frequency counter, or a service monitor. The kit is varactor tuned with volume and squelch controls. All of the parts are included for each frequency. You choose what frequency to build. Power requirements 9 volt DC.
| kit $34.95 | REC-2 | REC-CASE $12.95 |

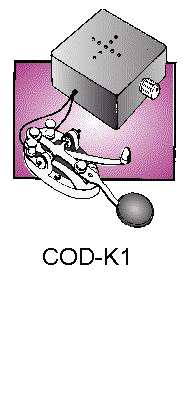

CODE OSCILLATOR KIT WITH KEY
Great for practicing your dots and dashes. Easy to build kit complete with all parts, schematic, enclosure and key. Morse Code chart is included. Power requirement 9v battery. SIZE: 2.5" x 3" x 1.5"
CODE OSCILLATOR
This easy to build kit will give you the dots and dashes for practicing the Morse Code. Comes with all parts & and schematic. Power requirement 6 to 15 volts DC. SIZE: .75" x 1"
(Case or key not included)
VOICE ACTIVATED SWITCH
This VOX circuit can be used to operate a tape recorder, ham radio, CB radio, or turn on an alarm. The VOX-1 kit has 100MA of output that operates a relay, light, motor. What could you do with a sound activated switch? Power requirement 7.5 to 18v DC. SIZE: 1.5" x 1.3" If you want to switch more power see our Triac (TP-1) or Relay (RP-1) Power kit.
THE "SEARCHER" RADIO DIRECTION FINDER
You can pay more but all you need is the "SEARCHER." A direction finder antenna that connects to any UHF/VHF Amateur Radio or Scanner. Great for fox hunting, finding hidden transmitters that are raising havoc with your repeater ... Look out FOX! This VERTICAL DI-POLE antenna connects to your radio through the antenna jack. Tune your radio to the frequency of the transmitter, any from 140 MHz to 500 MHz you are trying to locate, you will hear a tone and the transmit modulation at the same time. When the tone nulls (becomes silent) that is the direction you want to travel. To further check your progress the signal level meter of the radio should rise. The "Searcher" has an audio tone control and comes with a case to house the electronics, 4 antennas, and all the parts to construct a 24" wide VERTICAL DI-POLE antenna. Sorry no 9v battery. You can have fun with this kit and it won't break your pocketbook. Power requirement 9v DC.
The WBA series has been designed using teflon printed circuit board and surface mount technology for better performance. The RF preamp was designed to be used with wide band communication receivers, scanners, HT's, frequency counters, distribution amplifiers for satellite signals, VHF/UHF TV, local area network, or laboratory instruments.
Use the WBA-4 amplifier to drive Double Balanced mixers or frequency counters. It amplifies high-level signals to an amplitude of approximately 1v.
- 1MHz to 1.5GHz 7dB NF
- 1dB compression =+11dBm
- Gain: 1MHz-8dB to 1.5GHz-5dB
- Power requirement: 12v @ 50Ma
Use the WBA-6 amplifier for scanners, HT's, Frequency counters, Satellite Receivers. It amplifies low-level (weak) signals. If the signal is extremely low, two amplifiers can be used in a series.
- 1MHz to 2.5GHz 2.8dB NF
- 1dB compression=0dBm
- Gain: 1MHz-20dB to 2.5GHz-6dB
- Power requirement: 12v @ 6Ma
The WBA-64 is a very good distribution amplifier for VHF/UHF TV signals or local area network systems. SIZE: 2.45" x .8"
- 4MHz to 1.9GHz 3dB NF
- 1 dB compression =+8 dBm
- Gain: 4MHz-29 dB to 1.9 GHz-17dB
- Power requirement: 12v @ 56 Ma
